How to Measure a Bolt

To accurately assess a bolt’s dimensions, one must consider several critical measurements: the bolt’s diameter, the length of its shank, thread pitch, material grade, thread length, and head size. While metric units are sometimes used, internationally recognized bolt sizes are typically described in inches.

For those needing to identify the size of a bolt for an assembly, having a similar bolt on hand can simplify the process. Follow these detailed steps:

Step 1: Measure the Shank’s Diameter

The diameter of the bolt’s shank is the first key dimension. Use calipers or a bolt gauge for an accurate measurement.

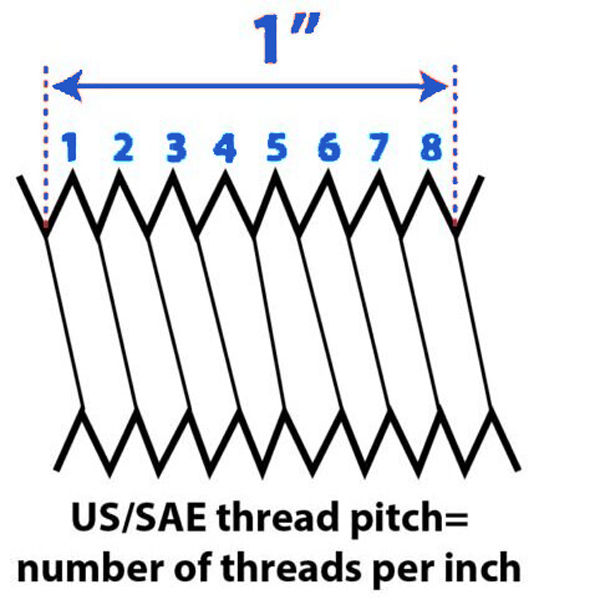

Step 2: Determine the Thread Pitch

Thread pitch refers to the number of threads per inch on the bolt’s shank. Count the threads over a one-inch length to find this measurement. For shorter lengths, calculate by proportion to estimate the count over a full inch.

Step 3: Measure the Shank’s Length

This is the distance from where the bolt’s head meets the shank to the tip of the bolt.

Step 4: Ascertain the Bolt’s Grade

The bolt’s grade indicates its material and strength, usually marked on the bolt’s head. Use a reference chart for bolt head markings to determine the grade.

Step 5: Identify the Head Shape of the Bolt

Bolt heads vary in shape, with the hexagonal (six-sided) being most common. However, some applications may require bolts with square or dome-shaped heads.

Step 6: Measure the Length of the Threaded Portion

Different from the shank length, this measurement focuses on the part of the bolt that contains threads. This is crucial for distinguishing between a standard hex bolt and a fully threaded tap bolt.

If you encounter difficulties in measuring a bolt for your specific needs, do not hesitate to contact us for assistance.
